Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy xay bột củ cải đường Máy nghiền bột siêu mịn | Ứng dụng: | Thực phẩm, hóa chất, dược phẩm, vv |
|---|---|---|---|
| Vật liệu: | SS 304/316 | Dung tích: | 20-1800 kg/giờ |
| Kích thước đầu vào: | <15mm | độ mịn: | lưới 60-2500 |
| Động cơ máy nghiền: | 11-75kw | Điện áp: | tùy chỉnh |

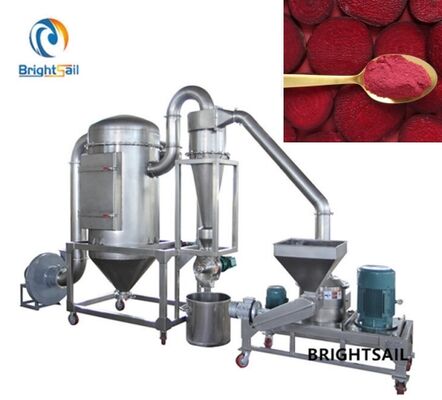

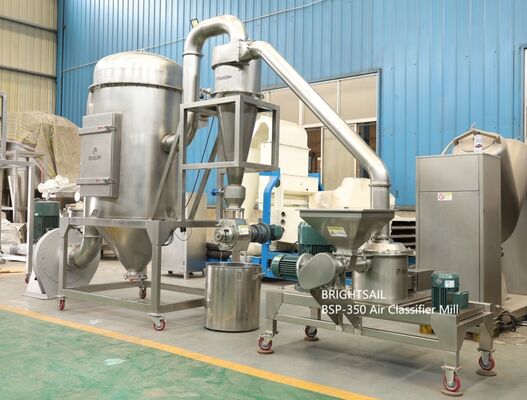

Beetroot powder grinder machine ultra-fine powder mill
The BSP ultra-fine powder mill is widely used in the pharmaceutical, chemical, food, magnetic materials, and powder industries. As a new generation pulverizer, it integrates crushing, dust collection, and continuous discharge into one efficient system. It is especially suitable for processing beetroot and other food materials into fine powder.
Working Principle:

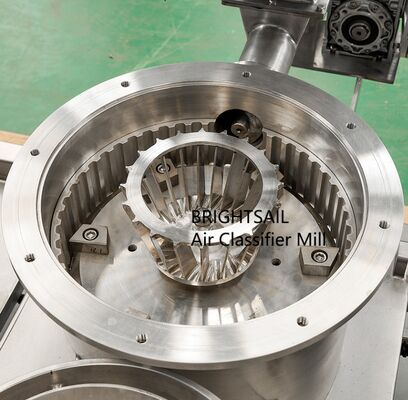

The machine consists of a main crusher, cyclone separator, pulse dust collector, and blower. Materials like beetroot are crushed by the relative motion between the rotating disc and the fixed fluted disc. The crushed material is then transported by the blower's airflow into the cyclone separator, where it is discharged through the outlet. Fine dust enters the pulse dust collector and is filtered for recovery. The fineness of the final powder can be adjusted by changing the sieve. The whole system is made of stainless steel and designed according to GMP standards, ensuring no dust leakage and compliance with food-grade requirements.
Main Features:
1.Integrated Grinding and Classification: Combines crushing and classifying to prevent over-grinding and ensure uniform particle size.
2.Adjustable Fineness: The output size can be adjusted between 60 and 2500 mesh to meet various processing needs for beetroot and other materials.
3.Effective Temperature Control: Features airflow cooling and a water-cooling jacket around the grinding chamber to minimize temperature rise, making it ideal for heat-sensitive materials like beetroot.
4.Dust-Free Operation: Operates under negative pressure, preventing dust pollution and ensuring a clean working environment.
5.Compact Structure: Space-saving design for easy installation and layout.
6.Low Maintenance: Few wearing parts and easy maintenance, reducing operational costs.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
FAQ:
1.Q: Is the control by PLC?
A: For most filling and packing machines, the control is by PLC.
For other machines, the standard control we use is button type. If customer requests PLC,we can also add PLC on the control, it is no problem.
.
2.Q: Can the machine’s voltage be customized?
A: Yes, sure. Like 220V,400V, 480V, 600Hz....we can do it.
3.Q: What will be the payment way?
A: Usually, we accept T/T, and sometimes, we can also accept LC, and credit card.
